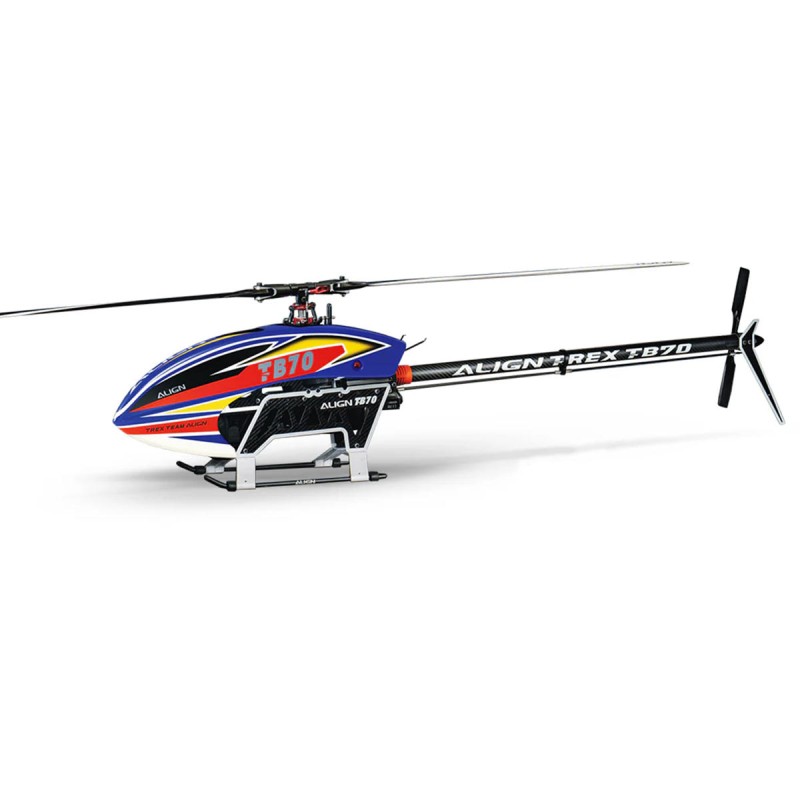

Align TB70 V2 Top Combo Electric Helicopter Kit
- Brand:: Align
- Product Code: AGNRH70E54A
- Availability: In Stock
Align TB70 V2 Top Combo Electric Helicopter Kit
The Align TB70 V2 Top Combo Electric Helicopter Kit is a high-performance model designed for enthusiasts seeking explosive power and smooth, agile flight. Operating at a main rotor speed of 2150-2200rpm, this helicopter offers incredible power output and an exceptional flying experience. The precision engineering and innovative design ensure durability, high transmission efficiency, and low energy consumption, making it a standout in the electric helicopter market. The TB70 V2 combines cutting-edge technology with refined craftsmanship, offering a lightweight yet robust structure perfect for both 3D flight and stable performance.
Features:
- 15T high-hardness carbon steel main driven gear
- Precision-ground gear surface
- Lightweight and streamlined design minimizes wind resistance
- Additional guide wheel for belt stabilization
- Low center of gravity rotor head design
- Adjustable belt tension component
- Robust tail box with large diameter drive pulley
- 800MX brushless motor with 5100w continuous output
- Inlaid structure for easy ESC and gyroscope installation
- High-strength 3k carbon fiber side panels
Includes:
- (1) TB70 V2 Top Combo Electric Helicopter
- (2) 700-Size Carbon Fiber Main Blades
- (2) 105-Size Carbon Fiber Tail Blades
- (1) 800MX Brushless Motor
- (3) DS830M High Voltage Brushless Servo
- (1) DS835M High Voltage Brushless Servo
- (1) Hobbywing Platinum HV 260A V5 Brushless ESC
- (1) 22T Motor Belt Pulley
Needed To Complete:
- (1) 6-Channel Transmitter & Receiver
- (2) 22.2V 6S 4000-4800mAh LiPo or one 12S 5200mAh LiPo Battery
- (1) Compatible Battery Charger
- (1) Digital Pitch Gauge
- (1) Multi-function Tester
- (1) Flybarless System
Specifications:
| Power Source | Electric |
|---|---|
| Length | 53.39in (1356mm) |
| Width | 7.36in (187mm) |
| Height | 14.09in (358mm) |
| Flying Weight | 176.37oz (5000g) |
| Main Rotor Diameter | 60.71in (1542mm) |
| Tail Rotor Diameter | 10.98in (279mm) |
| Motor Belt Pulley | 22T |
| Belt Pulley | 50T |
| Front Drive Main Shaft | 15T |
| Main Drive Gear | 62T |
| Autorotation Tail Drive Gear | 27T |
| Tail Drive Gear | 23T |
| Assembly Level | Kit* |
